Configuring Trap Destinations on [UNIX]/Linux

To configure the trap destinations on a UNIX/Linux node, perform the following steps:

  1. Verify if the SNMP package is installed. If not, install the SNMP package depending on the version and flavor of the UNIX/Linux machine.

  2. Navigate to /etc/snmp/snmpd.conf, and add trap destination IP address, community name, and standard SNMP port number.

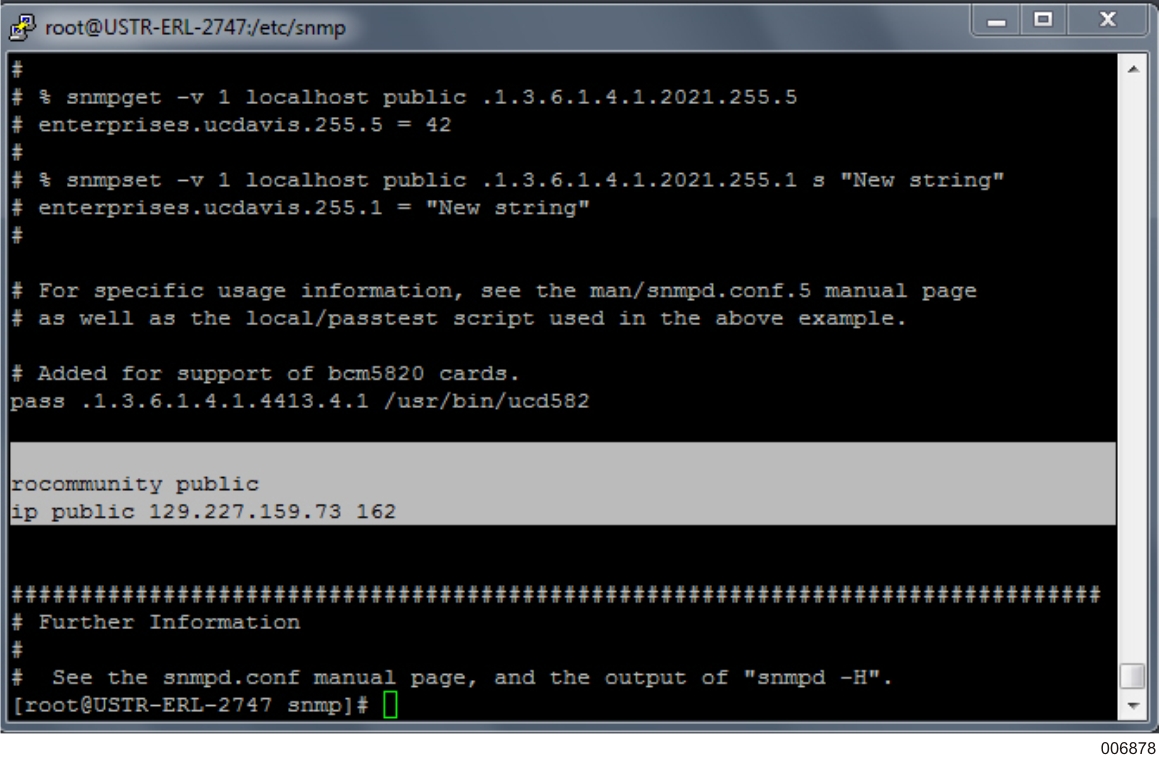

    Figure 33. Updating /etc/snmp/snmpd.conf

    Updating /etc/snmp/snmpd.conf

  3. Add domain name along with the IP address of the UNIX/Linux machine in /etc/hosts.

  4. Point the ULRM agent to the trap destination IP address.

  5. Add the IP address and domain name of the UNIX/Linux machine in the Windows hosts file located at C:\Windows\System32\drivers\etc (where the Operations Sentinel server resides).
