Establishing Secure Communication between SNMP Trap Agent and Operations Sentinel Server

To establish a secure communication between SNMP Trap Agent and Operations Sentinel server, perform the following steps.

  1. Click Start, Programs, Control Panel, Administrative Tools, and then Services.

    The Services window appears.

    Note: Open the Services in 32 bit mode.

  2. In this window, right-click Operations Sentinel Trap; then in the shortcut menu, click Properties.

  3. In the dialog box that appears, select the Operations Sentinel Servers tab. Under Network Configuration, select the check box to make it a secure connection. If the check box is not selected, it is a non-secure connection.

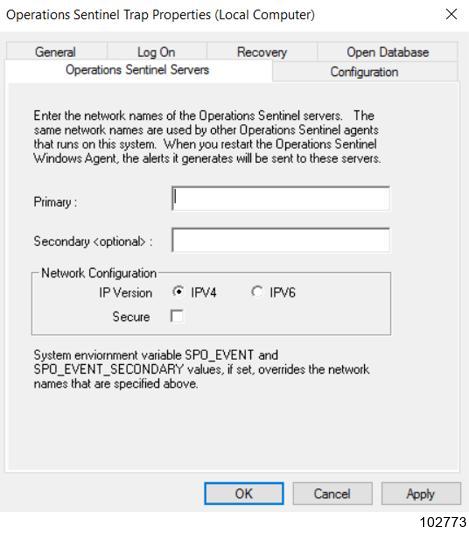

Figure D.2. Secure Communication between SNMP Trap Agent and Operations Sentinel Server

Secure Communication between SNMP Trap Agent and Operations Sentinel Server
