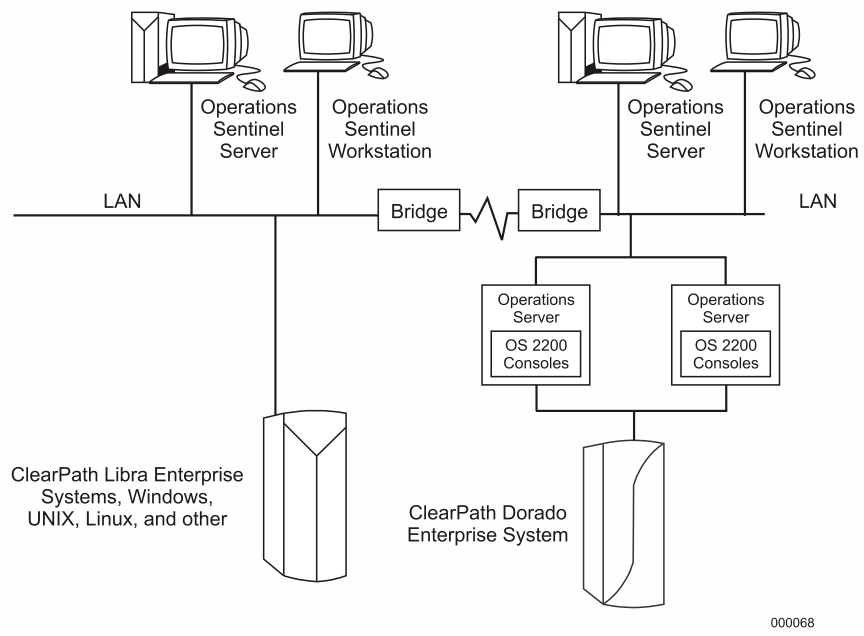

Figure 3–3 shows an example of an Operations Sentinel network running on separate LANs connected with a LAN bridge. Two Operations Sentinel servers are included for redundancy, but only one is required. Either of the server can access any of the systems. Either of the Operations Sentinel workstation can connect with either of the Operations Sentinel server.
