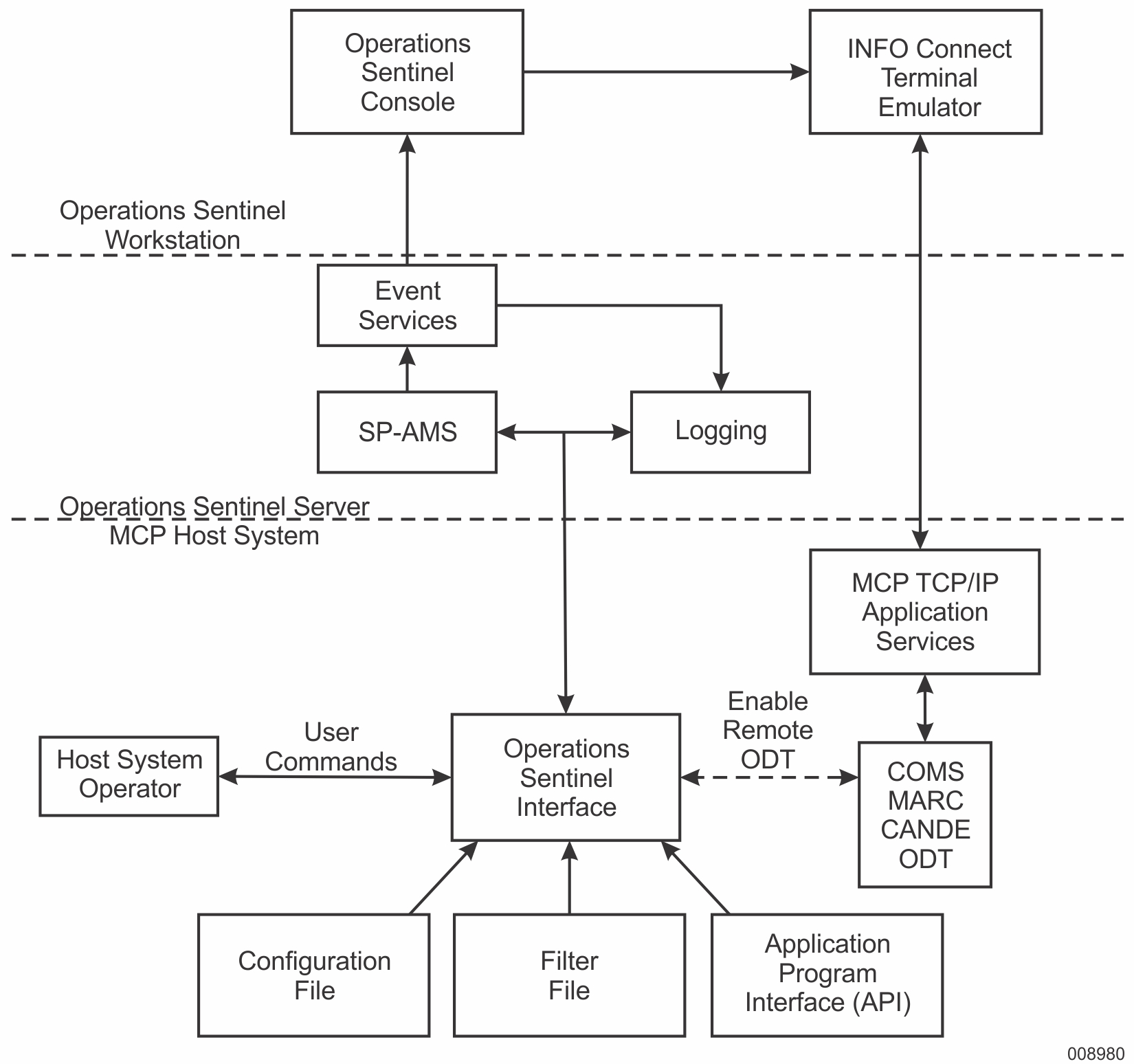

Figure 1-1 shows the communications paths between Operations Sentinel and a managed MCP host system. The interface software provides the message/automation path between the MCP host system and Operations Sentinel. A separate communications path is used to support the INFOConnect terminal windows that can be opened from Operations Sentinel Console.
