The partition image summary provides you the information about different attributes of the partition image. The following table summarizes the attributes displayed, their description and examples.
| Attribute | Description | Example |
|---|---|---|
Summary | ||
Name | Denotes the name assigned to a partition image that is commissioned on the platform. | Application1 |
Description | Provides the description of the partition image that is commissioned on the platform. | This partition image hosts Application1. |
Initial State on Platform Reboot | Denotes the initial state property that is set while commissioning a partition image. This attribute enables you to identify whether or not the partition image is started after a platform reboot. | RUNNING |
Number | Denotes a unique numerical value used for internal partition identification purposes that is assigned by the Fabric Manager to a partition image commissioned on a platform. | 2 |
Blueprint Name | Indicates the name of the blueprint that is used for commissioning the partition image on a platform. | RHEL64-Blueprint |
Platform Name | Denotes the platform name on which the partition image is commissioned. | BankA |
Hyper-Threading | Denotes if Hyper Threading is enabled for the partition image. If enabled, two logical processors per core are selected. | Enabled |
Partition Image Overview | ||
Health | Denotes the status of the partition image health. It can be Ok, Warning, Unknown, Monitoring Disabled (FM-LAN Disabled) or Critical. | Critical |
Current State | Indicates the current state of the partition image state. For more information on different states, see Understanding Status of Partition Images. | Disabled |
Processor | ||
Type | Denotes the processor brand, product line, model number, and the operating frequency of the platform on which the partition image is commissioned. | Intel(R) Xeon(R) CPU E5-2680 0 @ 2.70GHz |
Frequency | Indicates the processor frequency of the platform on which the partition image is commissioned. | 2.7 GHz (per processor) |
Cores and Memory | ||
Partition Chassis | Chassis selected for the platform image. | Chassis-A |
Cores | Displays the number of processor cores assigned for the partition image. | 4 |
Memory | Displays the memory allocated for the partition image. You can also choose a different memory size while commissioning a partition image. | 40 GB |
I/O Port Details | ||
NIC Ports | Displays the information about the number of NIC ports assigned for the partition image. | 2 |
HBA Ports | Displays the information about the number of HBA ports assigned for the partition image. | 1 |
Port & Config. Preview | Provides the preview of the ports selected and the legends for the partition image when you click Port & Config. Preview. | |
Boot LUN | ||
Internal Storage | ||
LUN Size | Denotes the LUN size of the partition image that is commissioned on EPP. | 20 GB |
External Storage | Displays the external storage information such as the Target WWPN, Target LUN No. and Primary Boot Path | 1234 ID:1 Slot 4– Port 5 |
Data LUN | ||
Internal Storage LUN Size-No | Displays the size and number of the data LUN. | 20GB - ID:2 [SCSi : 1200-100] |
IP Addresses | ||
FM-LAN | Displays the FM-LAN address of the partition image. | 172.29.1.2 |
IP-LAN | Displays the IP LAN address of the partition image. | 172.31.1.2 |
HD-LAN | Displays the HD-LAN address of the partition image. | 172.30.1.2 |
To view the partition summary
On the Fabric Manager user interface, point to System Administration, and then click CPF System.
Click Platforms and Partitions and then select the Partitions tab.
Double-click the partition image that you want to view.
The Summary tab displays the information about the selected partition image.

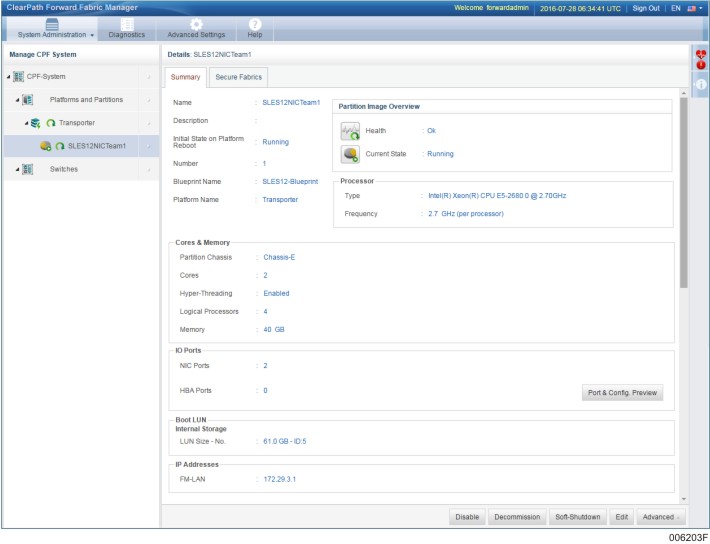

The following figure provides the summary of the selected partition image.
