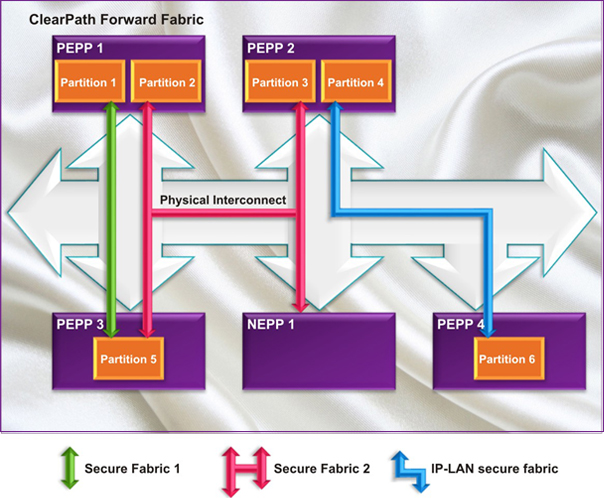

The following example shows a fabric that includes two secure fabrics and the IP-LAN secure fabric:
Partition 1 can only communicate with Partition 5 via Secure Fabric 1. No other partitions can communicate with Partition 1.
Likewise, Partition 5 can communicate with Partition 1 via Secure Fabric 1. But Partition 5 can also communicate with other partitions via Secure Fabric 2.
Partition 5, Partition 2, Partition 3, and NEPP 1 can communicate with each other via Secure Fabric 2. Partition 1, Partition 4, and Partition 6 cannot communicate with them.
Partition 4 and Partition 6 can communicate only with each other, via the IP-LAN secure fabric.
