Overview of Runtime Components
The Data Exchange Runtime environment includes the following components:
Windows Components
Data Exchange Administration Site
Data Exchange Administrative Service
Data Exchange Runtime Service
Data Exchange Agent for SQL Server
ClearPath Host Components
Data Exchange MCP Service (MCP Agent and DMSII Adapter)
Data Exchange OS 2200 Agent
After you have defined and deployed a transformation in the DDW, the transformation is deployed to the Administration Site. The Administration Site is used to control and monitor the Runtime activities. When a bulk data transformation or a changed data transformation is initiated, the transformation is sent to the Runtime Service and a request is sent to the Agent to retrieve source data. The Runtime Service applies this transformation to the source data and loads it into the target database. For more details on how these components interact with each other, refer to the Data Exchange Installation and Configuration Guide.

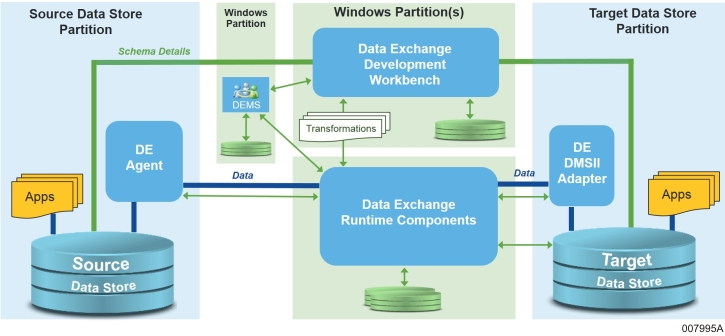

A high level architecture diagram of Data Exchange is as follows:
