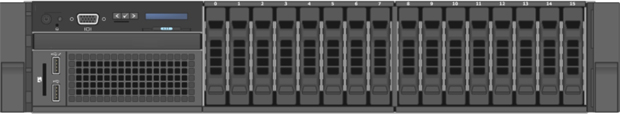

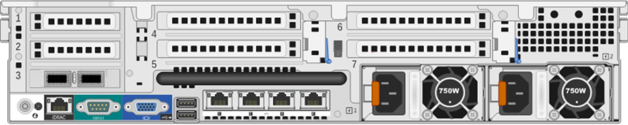

2-Socket (8-, 14- or 20-Core) Enterprise Partition Platform Front View illustrates the front of the 2-socket (8-, 14- or 20-core) enterprise partition platform; 2-Socket (8-, 14- or 20-Core) Enterprise Partition Platform Rear View illustrates the rear of the 2-socket (8-, 14- or 20-core) enterprise partition platform.
The platform AC power and power supply ratings are as follows:
| Platform Config. | Power Supply Output Wattage | Frequency | Voltage | Total Server Actual Current | Total Heat Dissipation | Maximum Inrush Current | Dual AC Input |
|---|---|---|---|---|---|---|---|
2 Socket 128GB Mem 2 Disks | 1100 W ea. (1 to 2) High Output PSUs | 50/60 Hz, auto-ranging | 100 – 240 V | 4 A at 208 V | 822 W (2807 BTU/h) | 55 A | Yes |
Note: The operational voltage range is 200 – 240 VAC.
The dimensions and weight are as follows:
| Dimensions | Weight | |
|---|---|---|
| Width | 44.42 cm (17.49 in.) | 31.40 kg (69.23 lb.) |
| Depth | 68.38 cm (26.92 in.) | |
| Height | 8.74 cm (3.44 in.) | |
