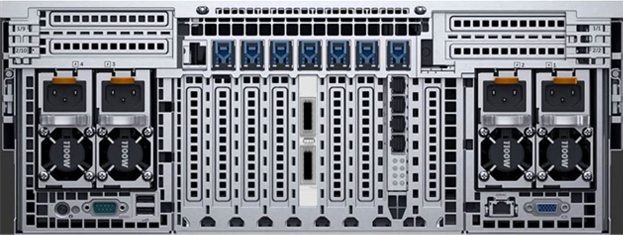

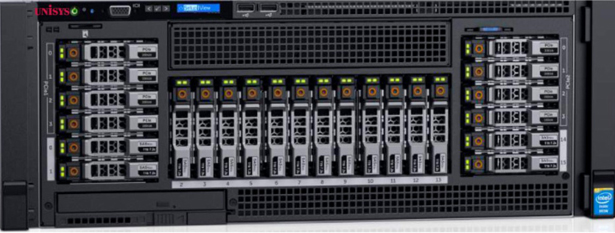

4-Socket (16- or 22-Core) Enterprise Partition Platform Front View illustrates the front of the 4-socket (16- or 22-core) enterprise partition platform; 4-Socket (16- or 22-Core) Enterprise Partition Platform Rear View illustrates the rear of the 4-socket (16- or 22-core) enterprise partition platform.
The platform AC power and power supply ratings are as follows:
| Platform Config. | Power Supply Output Wattage | Frequency | Voltage | Total Server Actual Current | Total Heat Dissipation | Maximum Inrush Current | Dual AC Input |
|---|---|---|---|---|---|---|---|
4 Socket 3TB Mem 24 Disks Max I/O HBAs | 1100 W ea. (2 to 4) High Output PSUs | 50/60 Hz, auto- ranging | 100 – 240 V | 6.9 A at 208 V | 1442 W (4920 BTU/h) | 55 A | Yes |
Note: The operational voltage range is 200–240 VAC.
The dimensions and weight are as follows:
| Dimensions | Weight | |
|---|---|---|
| Width | 48.21 cm (18.98 in.) | 59.0 kg (130.07 lb.) |
| Depth | 80.24 cm (31.59 in.) | |
| Height | 17.27 cm (6.8 in.) | |
