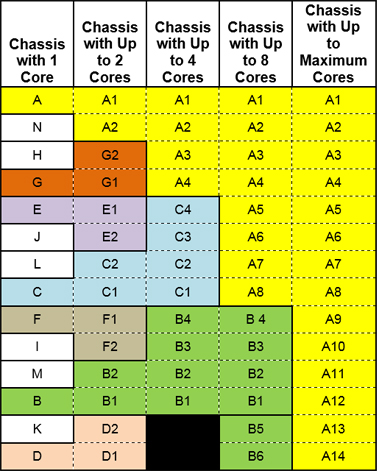

Chassis Configurations for a 2-Socket, 8-Core EPP shows the possible partition chassis configurations of an EPP with two processor sockets and 8 processor cores per socket.

Figure 26. Chassis Configurations for a 2-Socket, 8-Core EPP

Maximum Memory per Partition (Gigabytes)

Note that the following table assumes a memory configuration equal to the architectural limit of the system: that is, 24 DIMM slots populated with 64GB DIMMs.

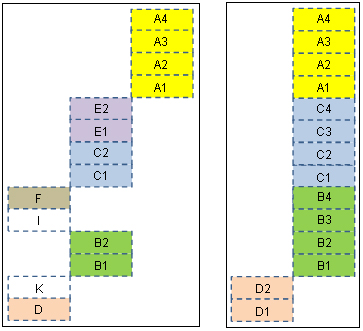

Two Examples of Valid Combinations of Partition

The example on the left has four 1-core partitions, three 2-core partitions, and one 4-core partition. The example on the right has one 2-core partition and three 4-core partition.
