The InfiniBand-Ethernet gateway switch is an optional capability that enables bare metal servers and virtual machines (VMs) in your Ethernet customer corporate LAN (public LAN) environment to participate as members of a secure fabric.

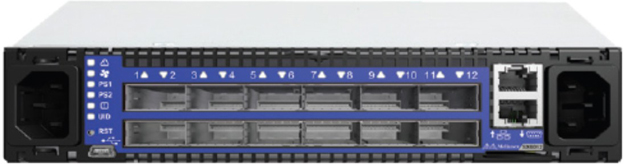

12-Port InfiniBand-Ethernet Gateway Switch illustrates the 12-port InfiniBand-Ethernet gateway switch.
The platform AC power and power supply ratings are as follows:
| Frequency | Voltage | Total Switch Actual Current | Total Heat Dissipation | Dual AC Input |
|---|---|---|---|---|
50/60 Hz | 100 – 240 V | 0.75 A at 200 V | 150 W (512 BTU/h) | Yes |
Note: The operational voltage range is 200 – 240 VAC.
The dimensions and weight are as follows:
| Dimensions | Weight | |
|---|---|---|
| Width | 20.07 cm (7.9 in.) | 2.99 kg (6.6 lb.) |
| Depth | 39.88 cm (15.7 in.) | |
| Height | 4.39 cm (1.73 in.) | |
