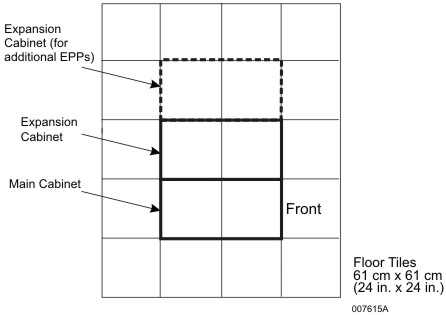

Hardware Footprint illustrates one possible placement of the hardware on a raised floor grid.
Note: Expansion Cabinets may be purchased to store additional enterprise partition platforms (EPPs).

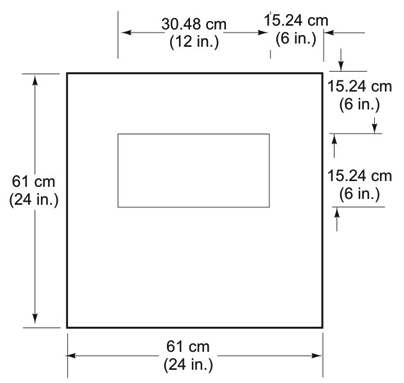

Raised Floor Panel Cutout illustrates the suggested raised floor panel cutout for cable access at the rear of the cabinet.
