The procedure PROCESSREPORTSPECIFICATIONS builds several tables from the report-specification commands. These tables are then used by the EDITOR procedure. A brief description of each table is presented here, followed by Figures 18–4 through 18–7 showing the fields in each table.
|

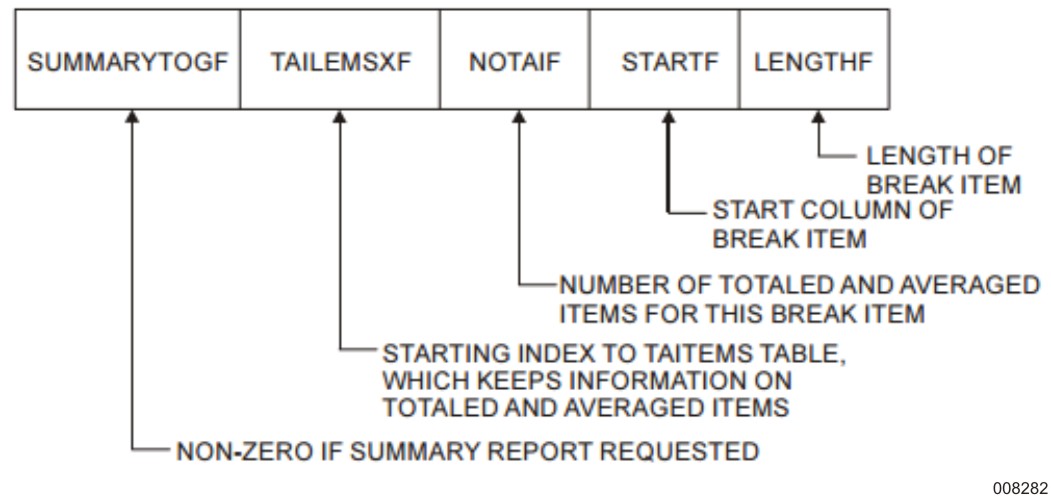

BREAKINFO |
Contains information from the BREAK commands. Refer to “BREAK Command” for more information. |
|

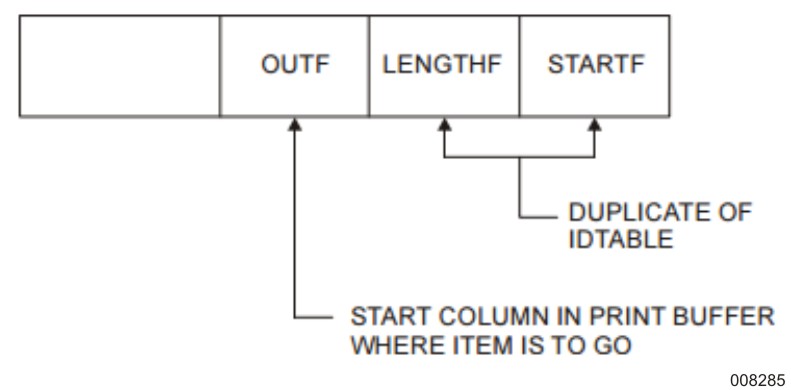

EDITORINFO |
Contains an entry for each output item. |
|

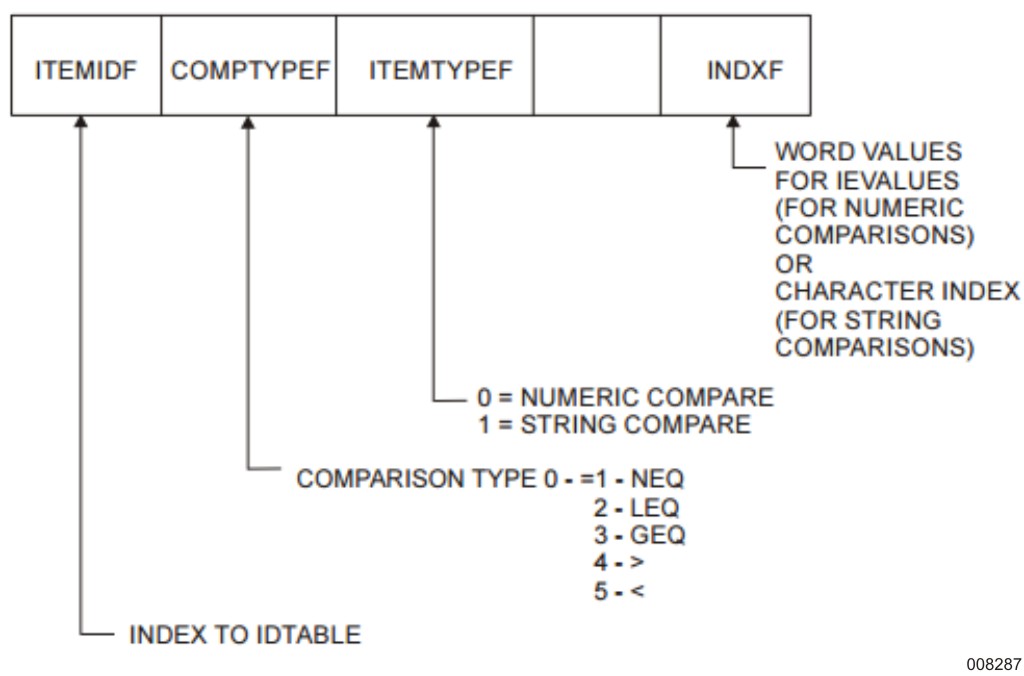

INCLCHECK |
|
|
EXCLCHECK |
Contains information from the INCLUDE and EXCLUDE commands. Refer to “INCLUDE Command” and “EXCLUDE Command” for more information. |
|

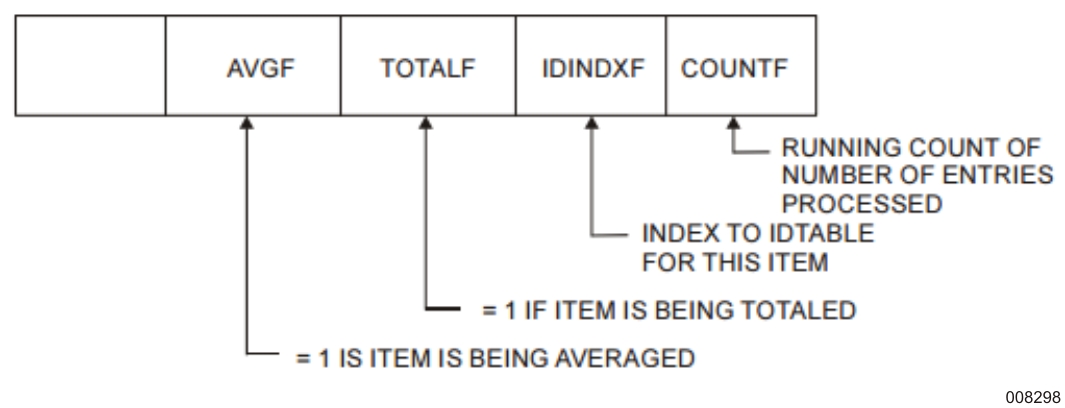

TAITEMS |
Contains information on the items specified for totaling and averaging. |
| Note: | Items STARTF and LENGTHF are duplicates of information kept in IDTABLE and are used to identify the item. Refer to “Structure of Program Files” earlier in this section for additional information about IDTABLE. |
| Note: | A parallel table, TA, is used to hold the current total value for the corresponding TAITEMS entry. |
